Scanx Intraoral View

ScanX Intraoral View

Efficiency Without Compromise.

The digital radiography system with a touchscreen and WiFi for all intraoral formats.

Choose model

Downloads

Videos

Specifications

Warranty

Highest Resolution

Superb image quality - Resolution up-to 20 lp/mm
Digital filters for reliable diagnostics - Adjust the contrast and sharpness of images
Convincingly explain treatment options and plan to patients
Multiple slots for efficient workflow
For all intraoral formats (sizes 0 through 4)

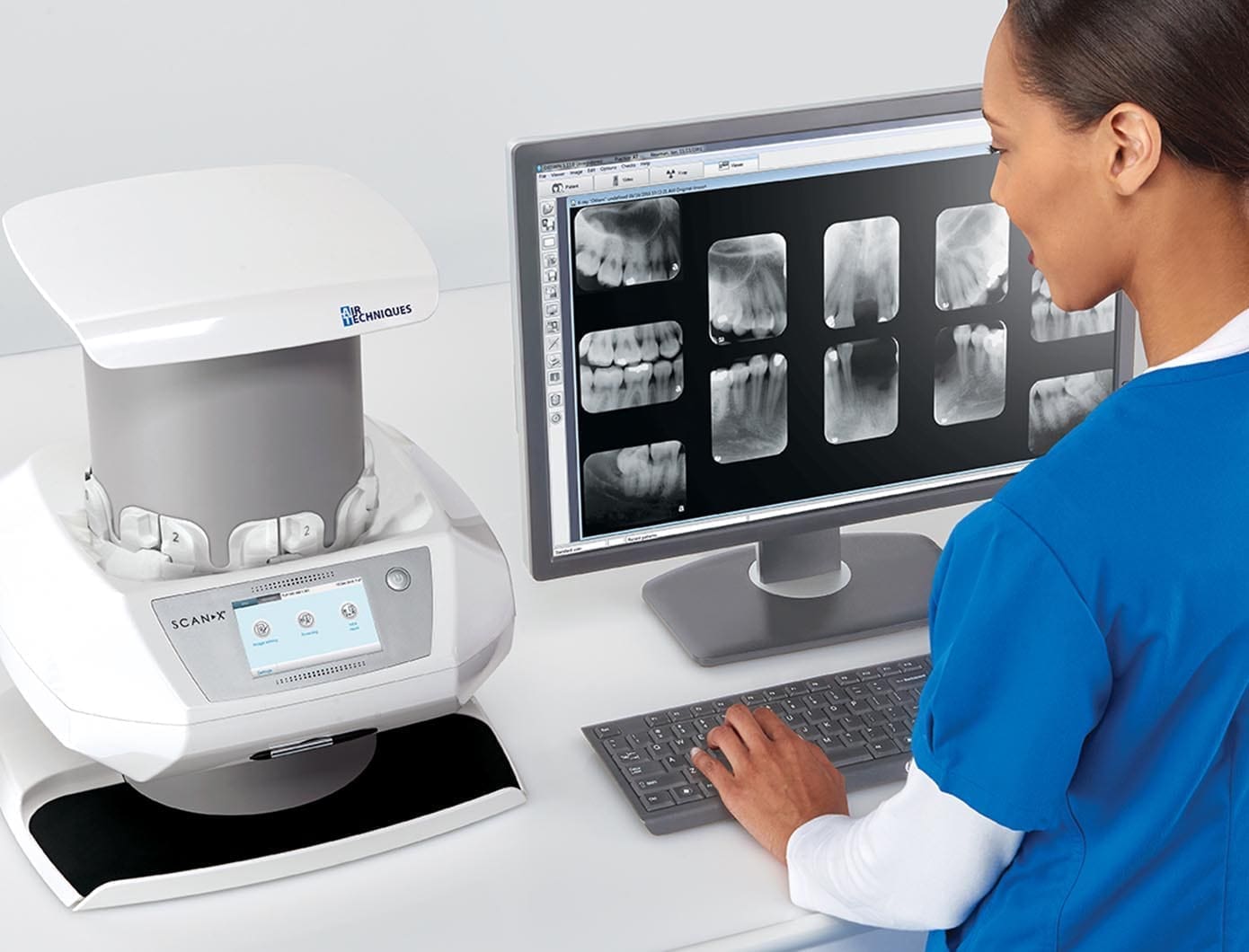

WiFi Functionality

WiFi allows the ScanX Intraoral View to be easily integrated into an existing network
Place the unit anywhere in the office
Connecting via LAN interface is also possible
Send scan jobs to the ScanX Intraoral View from any workstation
Multiple scan jobs can be simultaneously requested from different stations

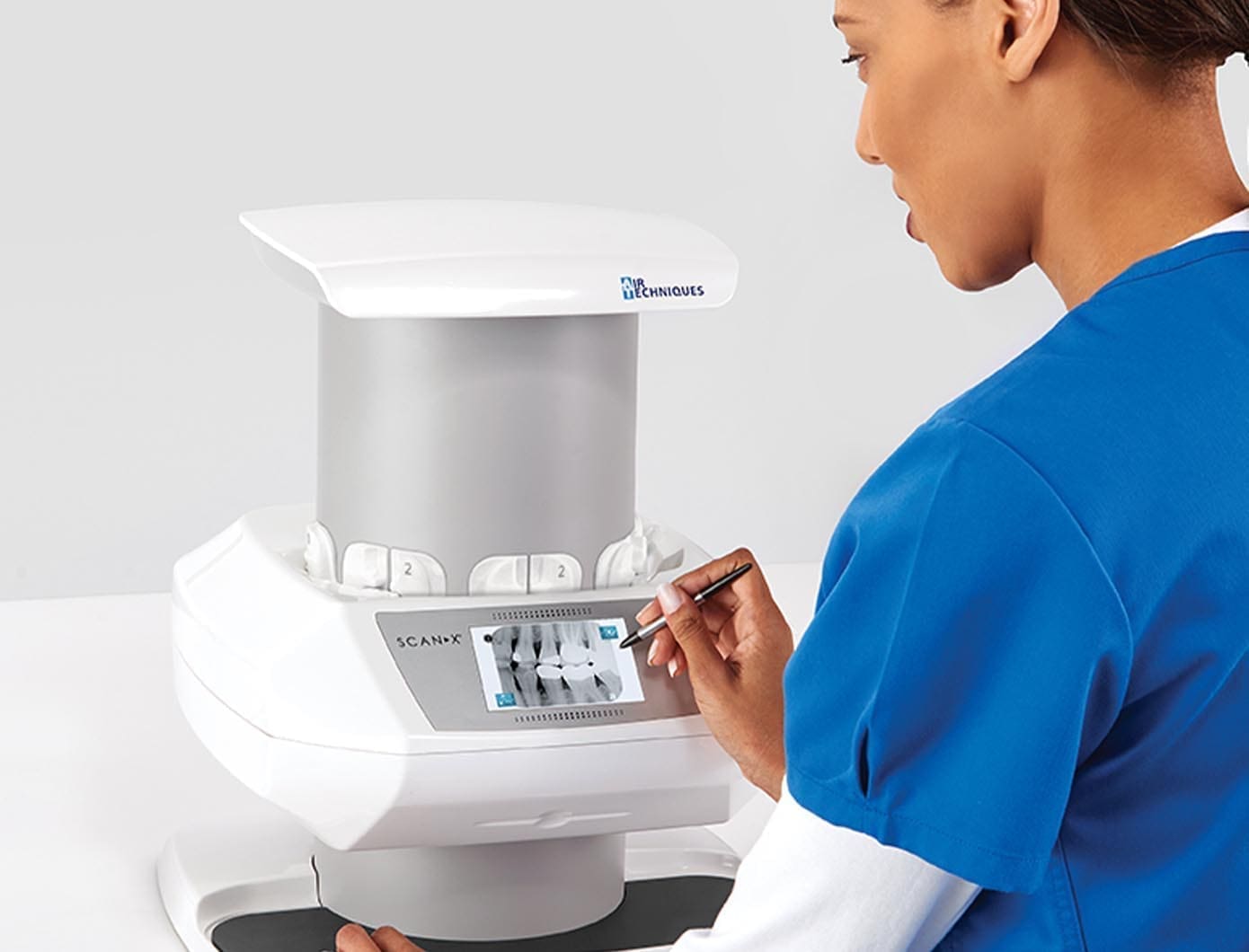

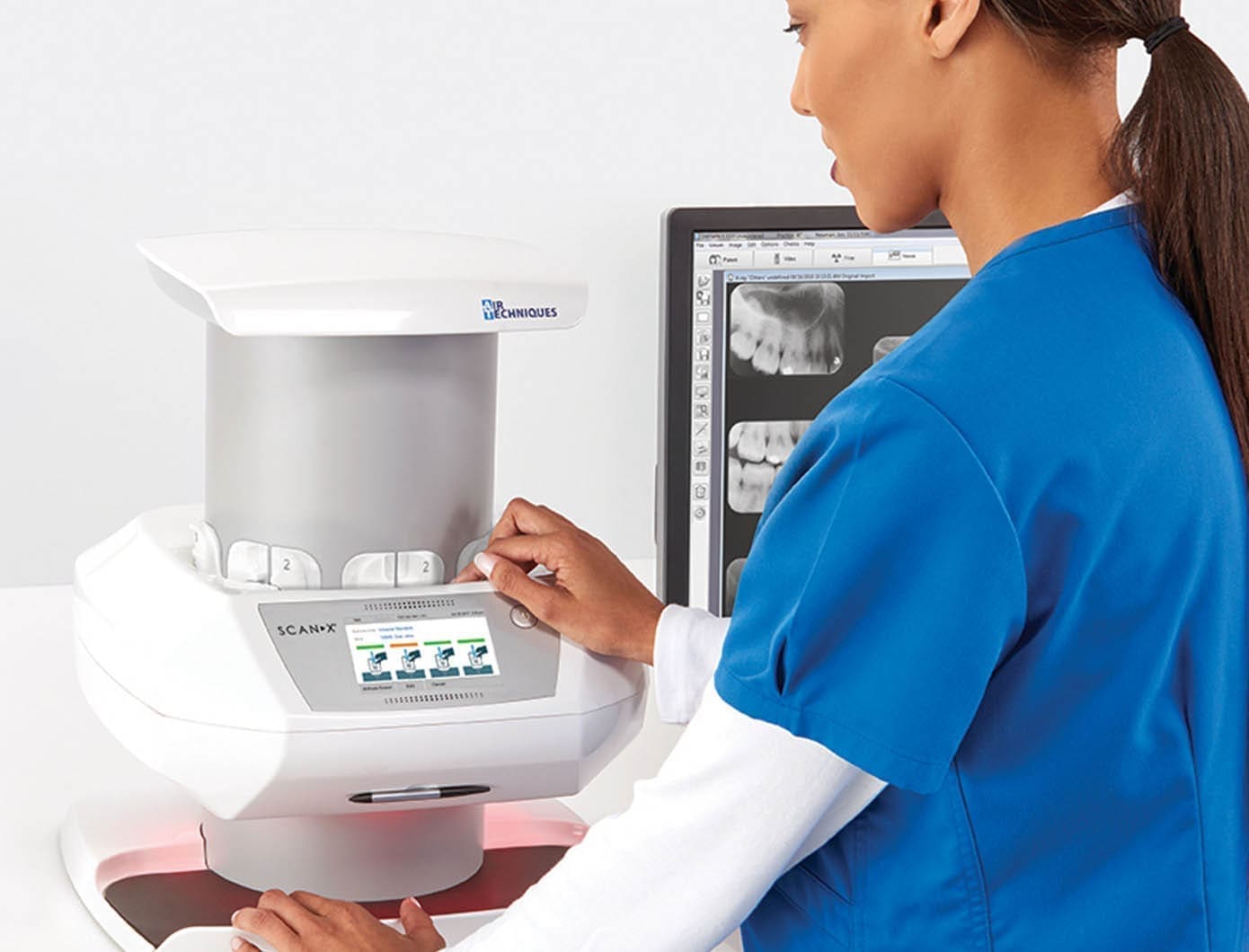

Intuitive Controls - Optimum Workflow

Increase your efficiency by 300%*
The touchscreen can display 16.7 million colors and provides excellent image quality
Quickly check X-ray results with the preview function for the scanned images
Preset scan modes provide quick and reliable scanning
You can still scan and save X-ray images even if the IT network is down
Images are stored temporarily in the internal memory and are transferred to the database later on

*When compared to a single plate scanner

Efficiency and Reliability

Air Techniques PSP technology makes it very easy to switch to a digital workflow
The thin, flexible plate offers clear advantages for you, your team and your patients
PSP are easier to position and sits more comfortably in the patient‘s mouth
Integrated erasure function enables the durable PSP is immediately ready to be used again
Handling is as easy as for analog film without the chemicals and dark room

Videos

Specifications

ScanX Intraoral View

G8600A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

ScanX Swift View 2.0

G8900A

Part Number

5″ Color-Touch

Display

S0, S1, S2, S3, S4

Plate sizes

ALL SPECS

ScanX Duo Touch

G8900A

Part Number

7" touchscreen, 800 x 480 pixels, 16.7 million colors

Display

All intraoral formats, sizes 0, 1, 2, 3, 4 IDX PSPs

Plate sizes

ALL SPECS

ScanX Classic View

G8700A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4, PAN, Ceph and TMJ

Plate sizes

ALL SPECS

ScanX Swift View

G8500A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

ScanX Swift

G8000

Part Number

N/A

Display

0, 1, 2

Plate sizes

ALL SPECS

G8600A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

G8900A

Part Number

5″ Color-Touch

Display

S0, S1, S2, S3, S4

Plate sizes

ALL SPECS

G8900A

Part Number

7" touchscreen, 800 x 480 pixels, 16.7 million colors

Display

All intraoral formats, sizes 0, 1, 2, 3, 4 IDX PSPs

Plate sizes

ALL SPECS

G8700A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4, PAN, Ceph and TMJ

Plate sizes

ALL SPECS

G8500A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

G8000

Part Number

N/A

Display

0, 1, 2

Plate sizes

ALL SPECS


	/

Display	2.4″ color glass display
Plate sizes	S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi)	40 (2,000)
Effective resolution (LP/mm, dpi)	22 (1,100 )
Greyscale (bit)	16 (65,536)
Weight (lbs/kg)	11.2 / 5.1
Dimensions (H x W x D inch/mm)	9.80 x 8.31 x 10.16 / 249 x 211 x 258
Standby function	Yes
Interfaces	LAN

Display	5″ Color-Touch
Plate sizes	S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi)	40 (2,000)
Effective resolution (LP/mm, dpi)	22 (1,100 )
Greyscale (bit)	16 (65,536)
Weight (lbs/kg)	11.68 / 5.3
Dimensions (H x W x D inch/mm)	10.75 x 8.31 x 10.16 / 273 x 211 x 258
Standby function	Yes
Interfaces	LAN, WLAN
