ProVecta S-Pan Cephalometric

ProVecta S-Pan Cephalometric X-Ray

The ProVecta S-Pan Ceph elevates your extraoral imaging capabilities with perfected extraoral imaging.

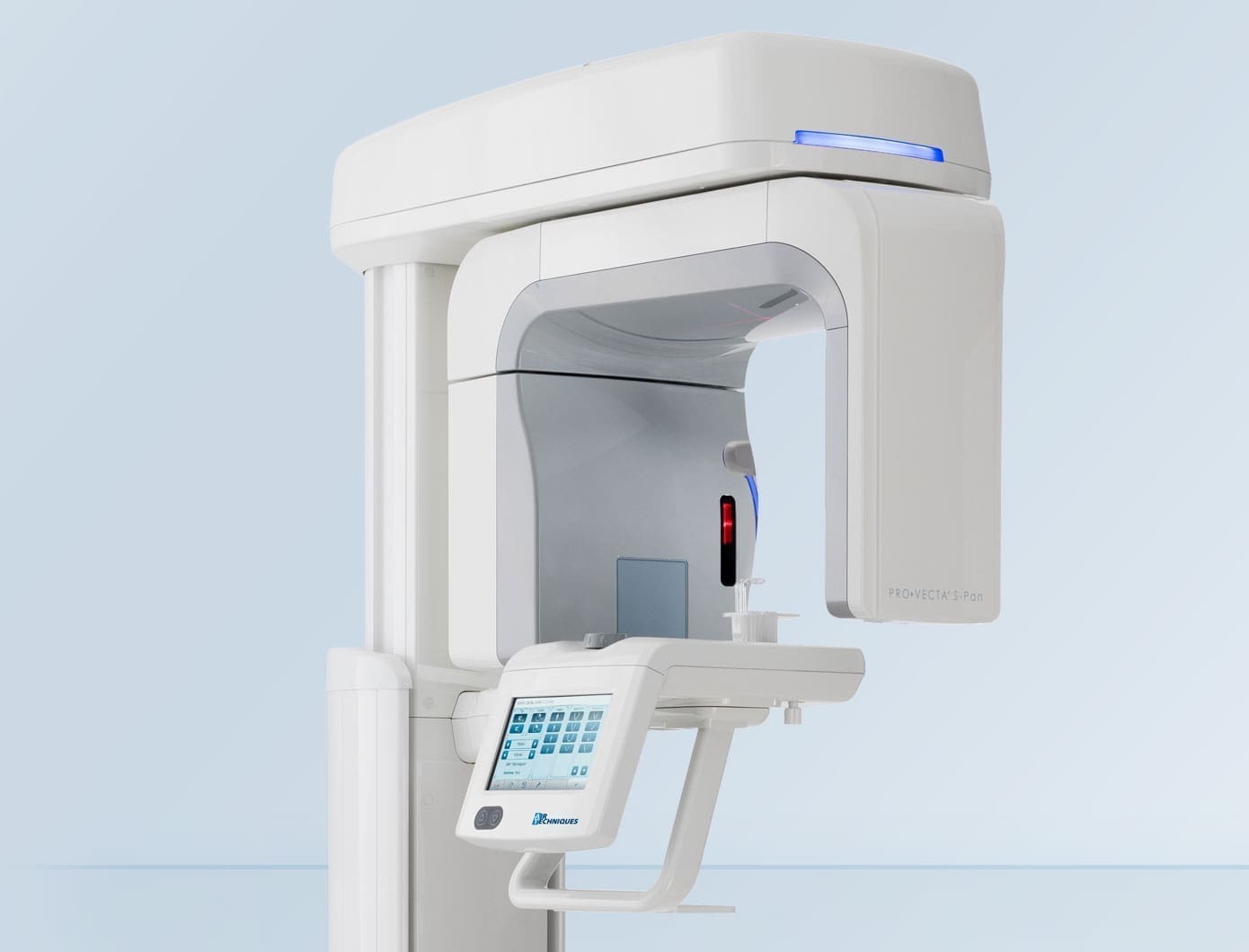

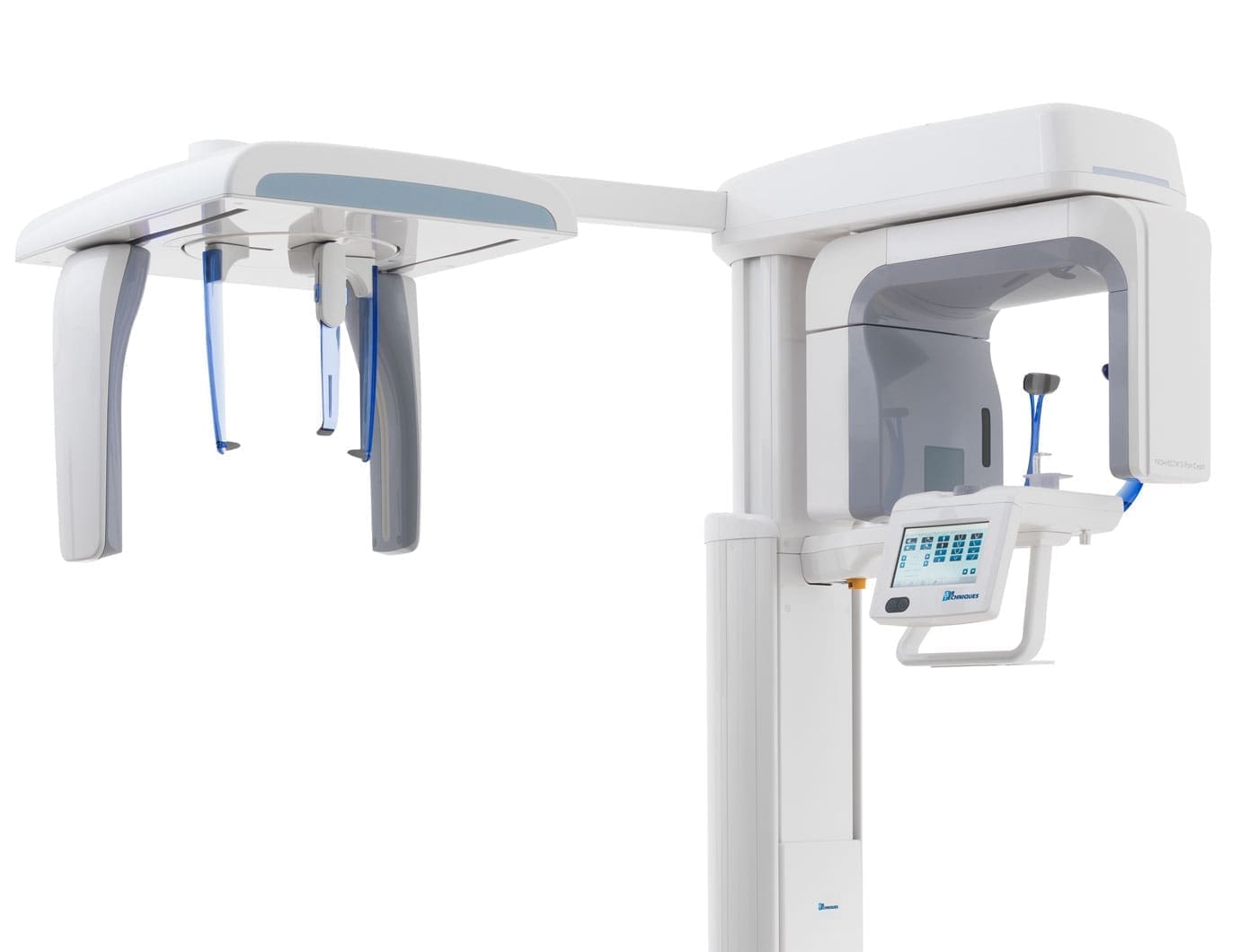

The 2D panoramic and cephalometric X-ray system offers ease of handling and optimal workflow, supported by an innovative 7” touch display. The system also comes with 2 high-end, modern CsI sensors that eliminate the tedious switching between panoramic X-ray and the cephalometric arm, reducing the risk of damaging the sensors or needing costly repairs from usage over time.

Choose model

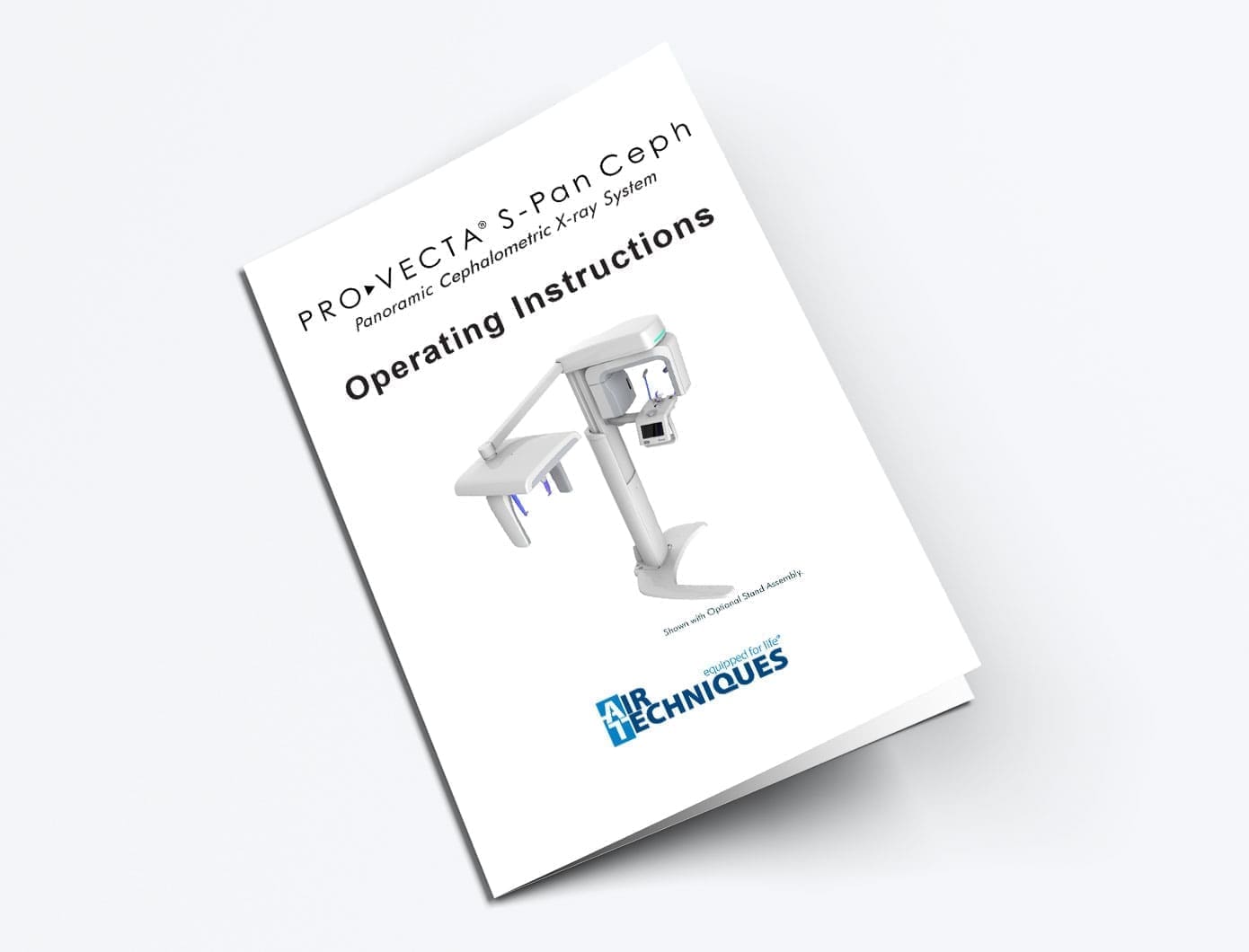

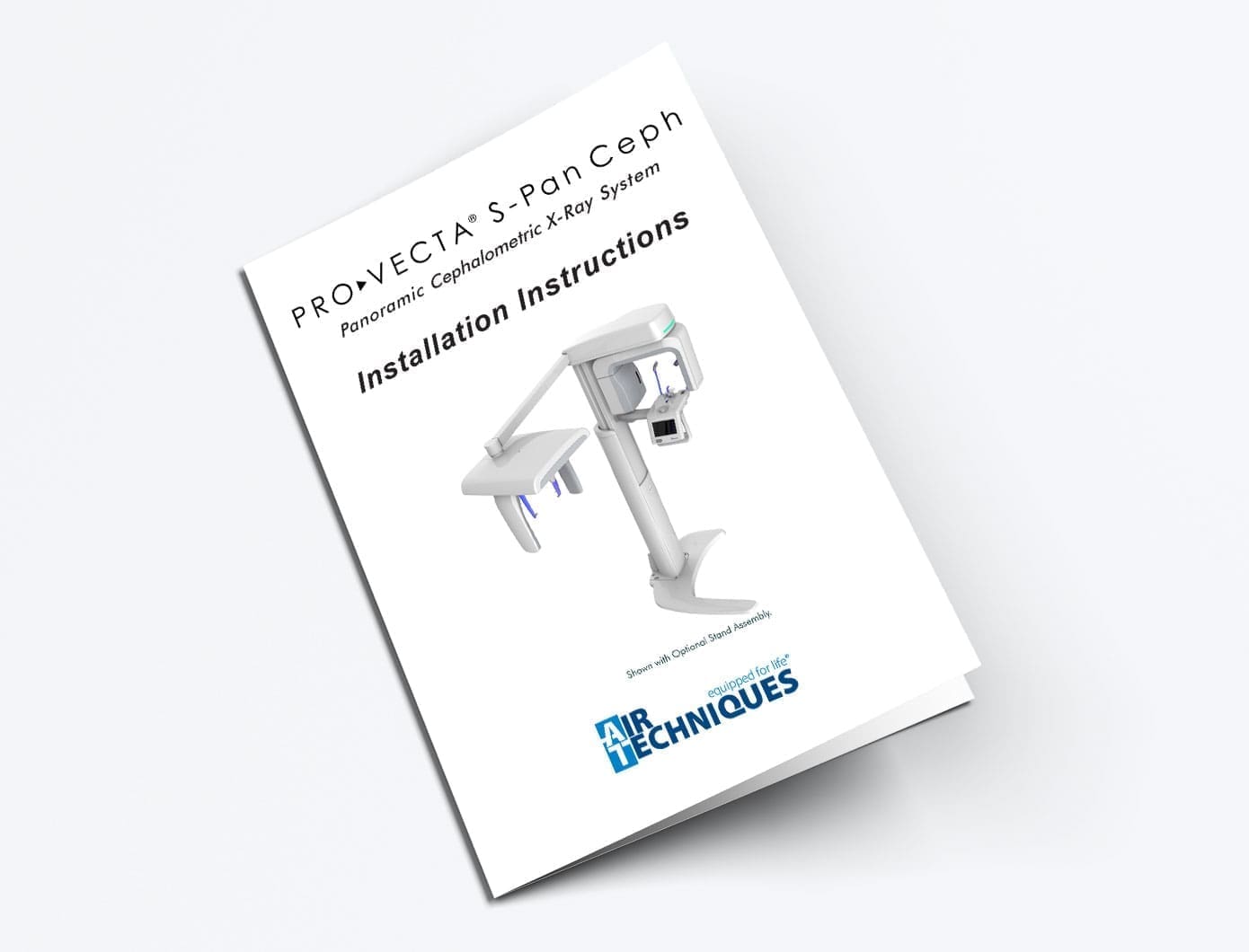

Downloads

Videos

Specifications

Warranty

LOW X-RAY DOSE – HIGH EFFICIENCY

Very fast scan in 4.1 seconds (lat. head)
Exceptional image quality
Low radiation dose
No sensor change from pan to ceph, 2 high-end CsI sensors are integrated
ProVecta S-Pan Ceph owes its excellent imaging performance to two innovative technologies: the high-end CsI sensor and the S-Pan technology, only available from Air Techniques

ProVecta S-Pan's ease of use, high quality images and quick image acquisition helps to reduce stress for me, my staff and my patients.

Melissa Rosenfeld, DDS

The modern and high-end CsI sensor technology enables better image quality and hence, significantly easier diagnosis
S-Pan technology uses a unique algorithm to compile 20 separate images into one pin sharp panoramic image at any spatial position of the tooth and jaw
From a single exposure, the system acquires 20 layers and slices them into 20,000 fragments, compiling them into the clearest, best image atomically

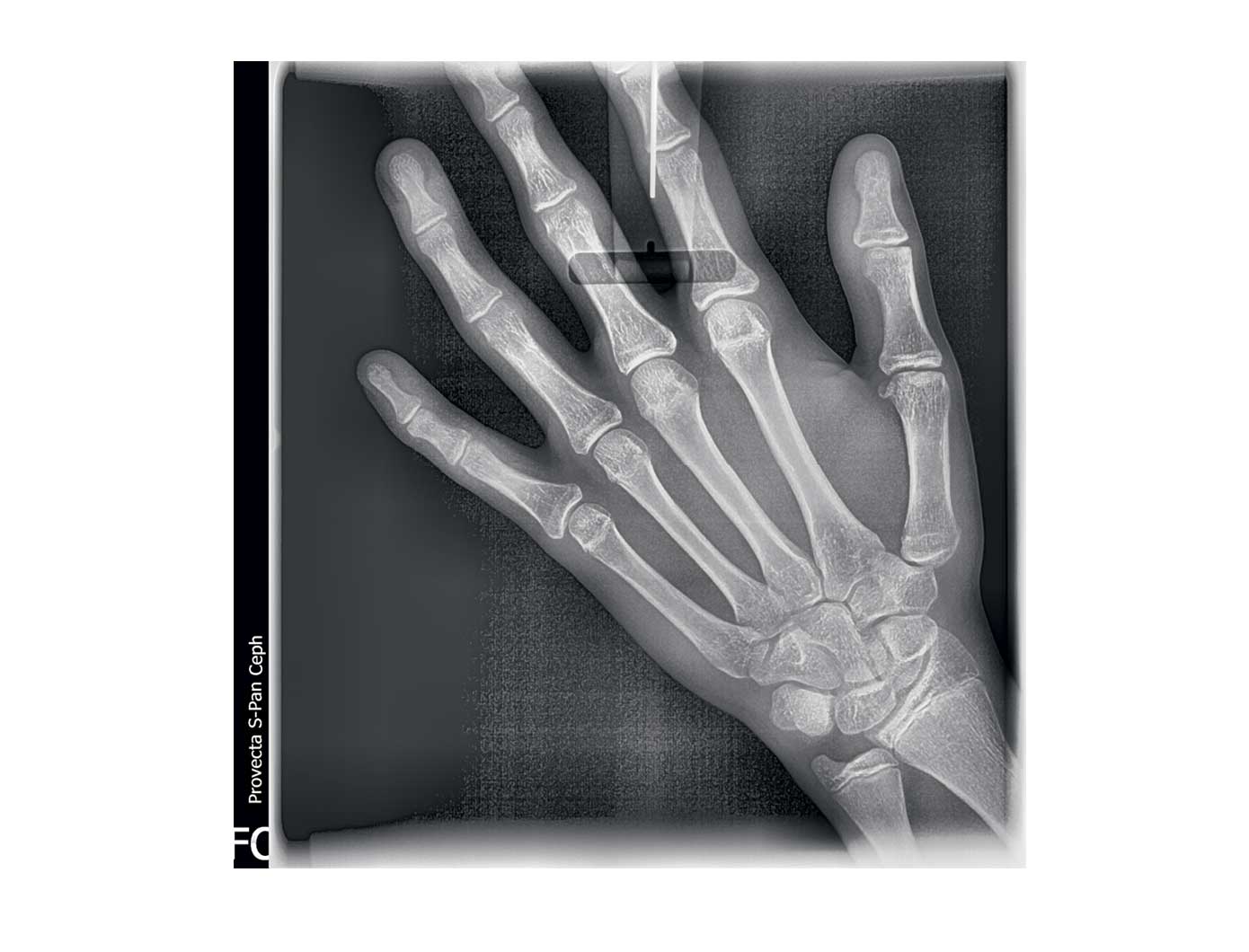

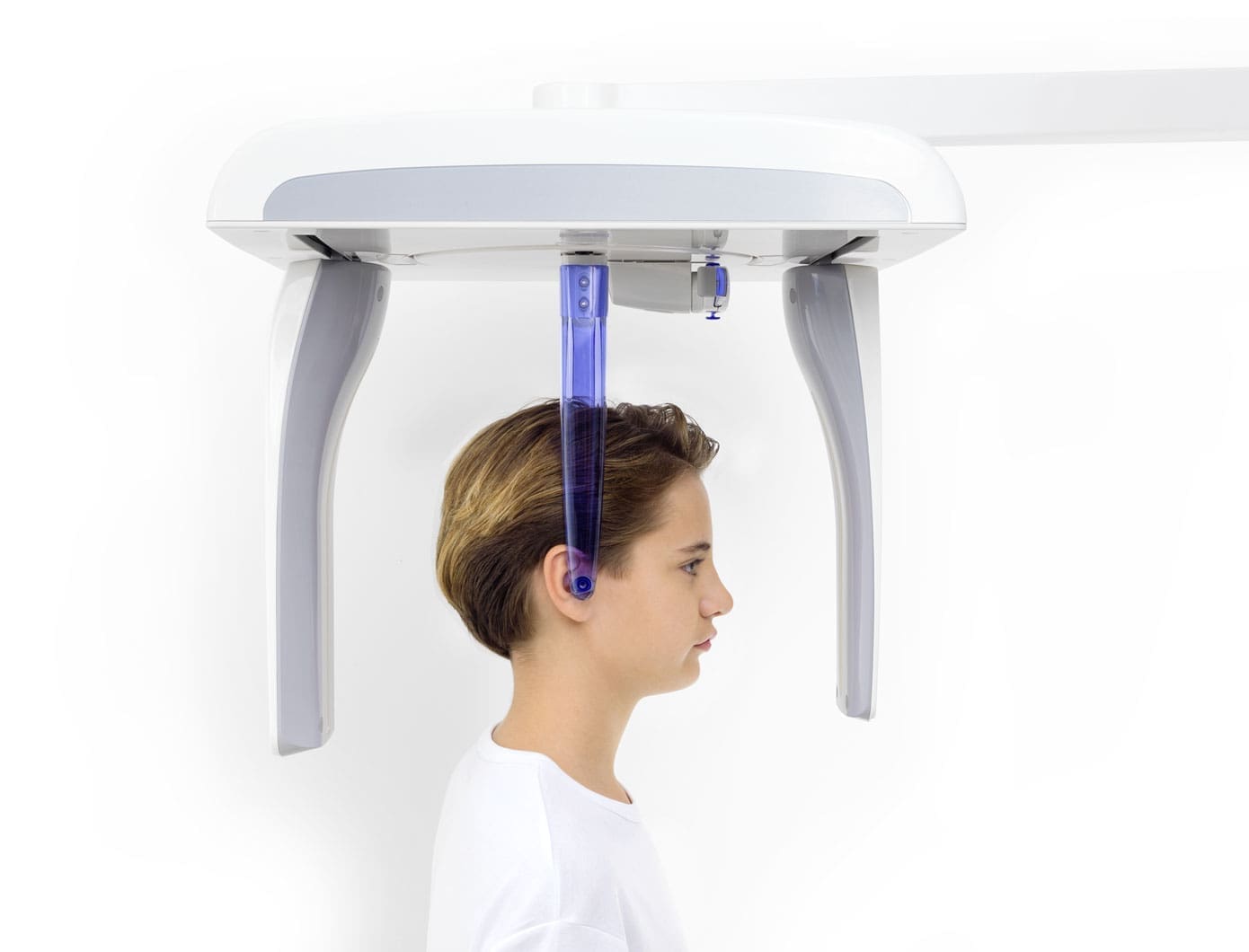

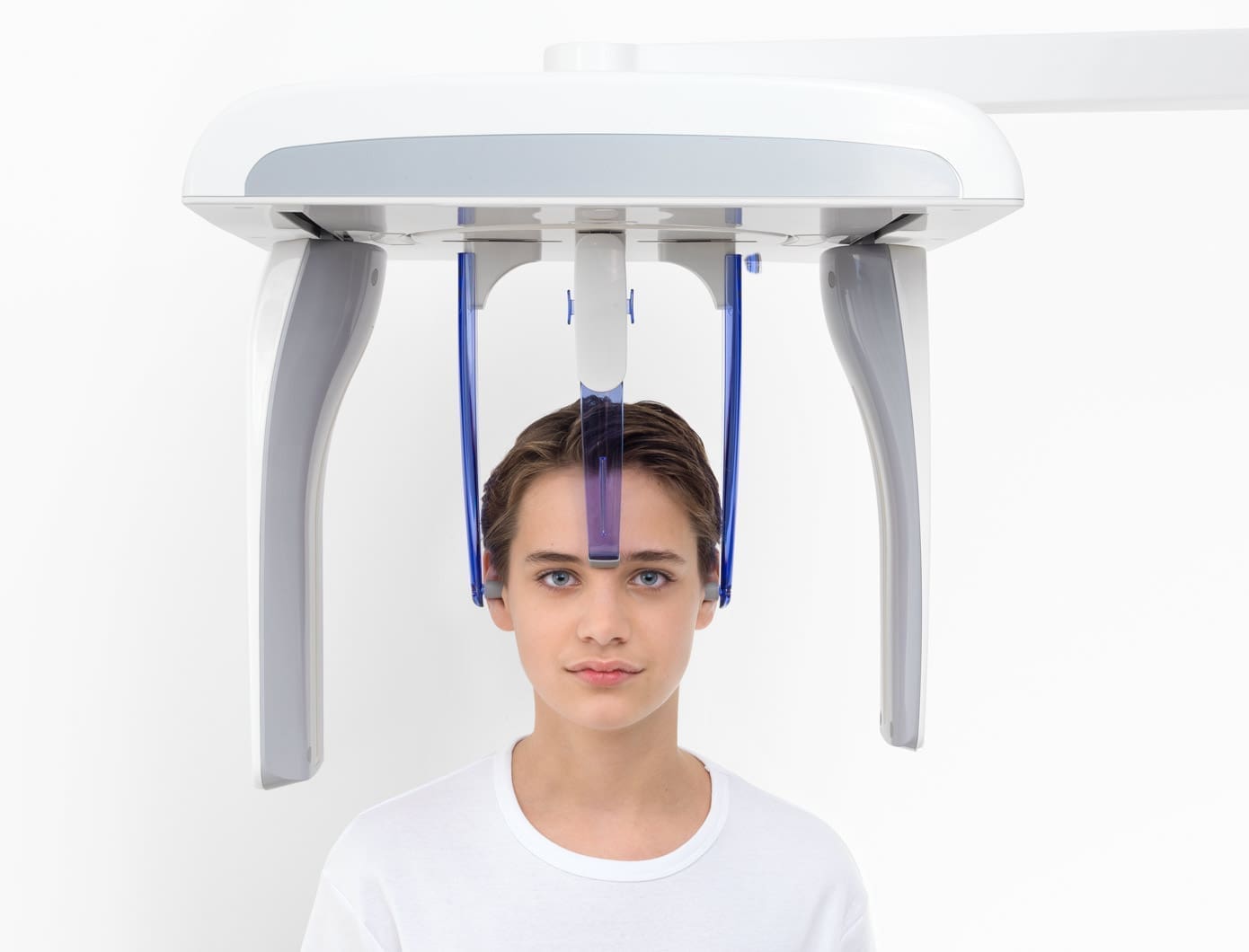

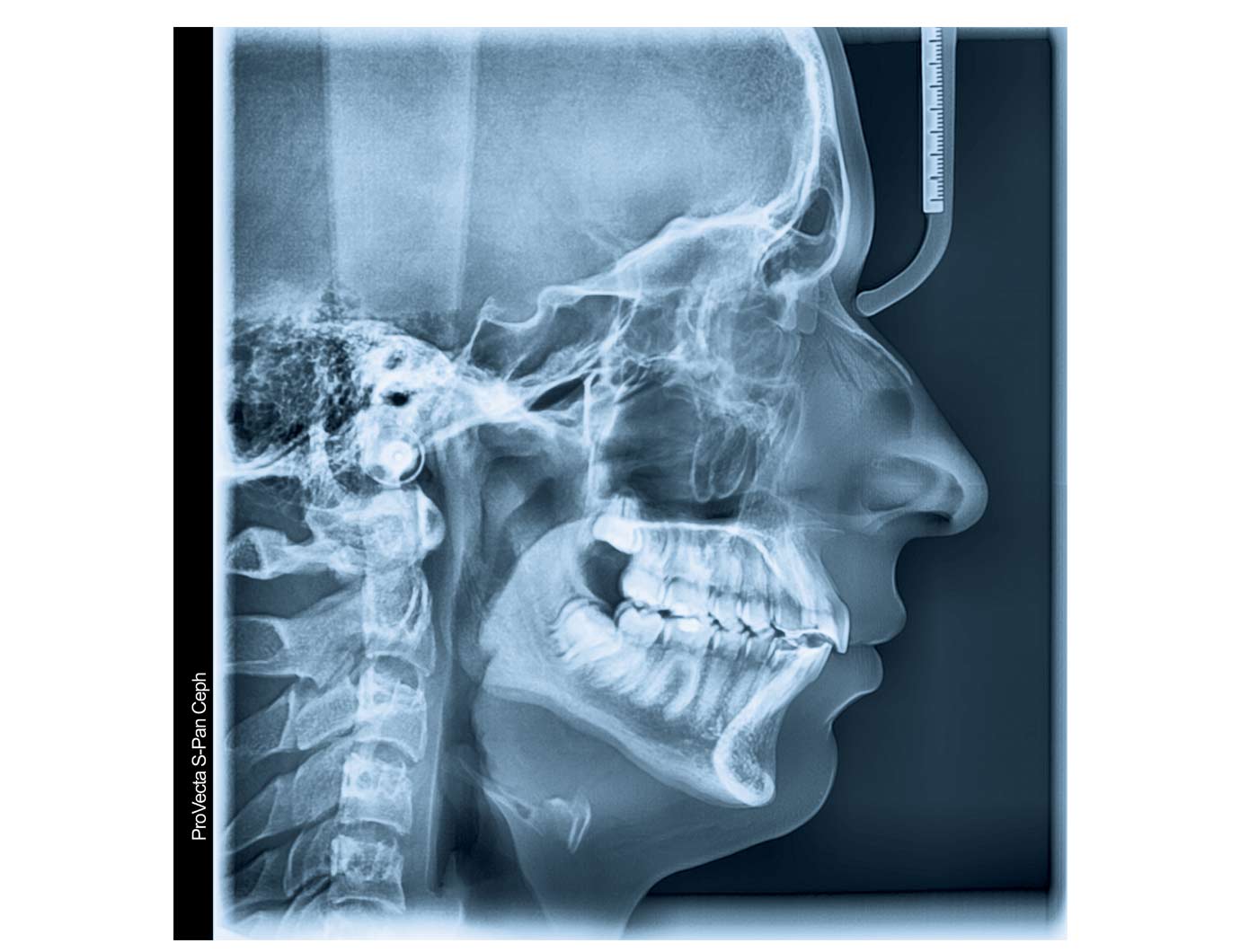

There are 17 panoramic programs + 5 programs for cephalometric X-ray recordings: Lateral head L, PA head, SMV (submentovertex), Waters view, and Hand

Videos

Specifications

ProVecta S-Pan Cephalometric X-Ray

A7550

Part Number

89.88" | 2283mm

Maximum height

286 lbs | 130 kg

Weight without pedestal

ALL SPECS

A7550

Part Number

89.88" | 2283mm

Maximum height

286 lbs | 130 kg

Weight without pedestal

ALL SPECS


	/

Downloads

Warranty

Related Products

North America

ProVecta HD Intraoral X-Ray

The ProVecta HD Intraoral X-ray offers a modern,...

View Details

North America

ProVecta S-Pan Panoramic
X-Ray

The ProVecta S-Pan from Air Techniques sets a...

View Details

Computer Requirements

CPU	2.0 GHz Intel Core i3 (or equivalent AMD processor)
Operating System	Windows XP Professional with Service Pack 3 or later for an Intel 32-bit processor; Microsoft Windows Vista Business, Enterprise, or Ultimate with Service Pack 2 or later for an Intel 32-bit processor;Microsoft Windows 7 Professional, Enterprise, or Ultimate with Service Pack 1 or later for an Intel 32-bit or an Intel 64-bit extended (x64) processor; or Microsoft Windows 8.1 Professional or Enterprise for an Intel 32-bit or an Intel 64-bit extended (x64) processor; or Windows 10.
RAM	At least 4 GB
Hard Drive	At least 200 GB
Network Interface	1000 Ethernet adapter
Video Display Adapter	At least 1024 x 1024 at 32-bit color, Direct3D-capable, workstation-class graphics card. At least 128 MB video memory.
Slots	1 Available PCI Express slot for the Network Interface adapter provided with the system.
Optical Drive	Digital Optical Drive (CD-ROM or DVD) to install the software
Software	Compatible, authorized, TWAIN Compliant, third-party software

Display	2.4″ color glass display
Plate sizes	S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi)	40 (2,000)
Effective resolution (LP/mm, dpi)	22 (1,100 )
Greyscale (bit)	16 (65,536)
Weight (lbs/kg)	11.2 / 5.1
Dimensions (H x W x D inch/mm)	9.80 x 8.31 x 10.16 / 249 x 211 x 258
Standby function	Yes
Interfaces	LAN

Display	5″ Color-Touch
Plate sizes	S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi)	40 (2,000)
Effective resolution (LP/mm, dpi)	22 (1,100 )
Greyscale (bit)	16 (65,536)
Weight (lbs/kg)	11.68 / 5.3
Dimensions (H x W x D inch/mm)	10.75 x 8.31 x 10.16 / 273 x 211 x 258
Standby function	Yes
Interfaces	LAN, WLAN
