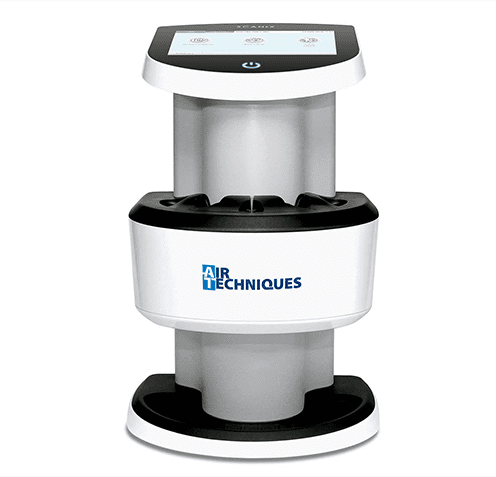

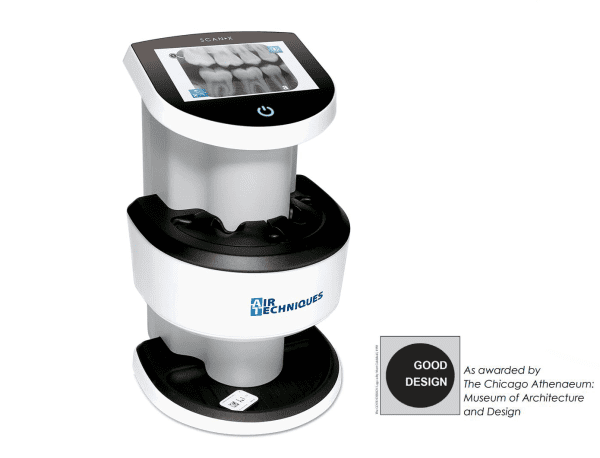

ScanX Duo Touch

ScanX Duo Touch

A Great Feeling of Efficiency and Reliability.

Air Techniques IDX PSP technology makes it very easy to switch to a digital workflow, thanks to the wide range of formats, the ScanX Duo Touch allows you to process on a single device.

Choose model

Downloads

Videos

Specifications

Warranty

Intuitive Controls - Optimum Workflow

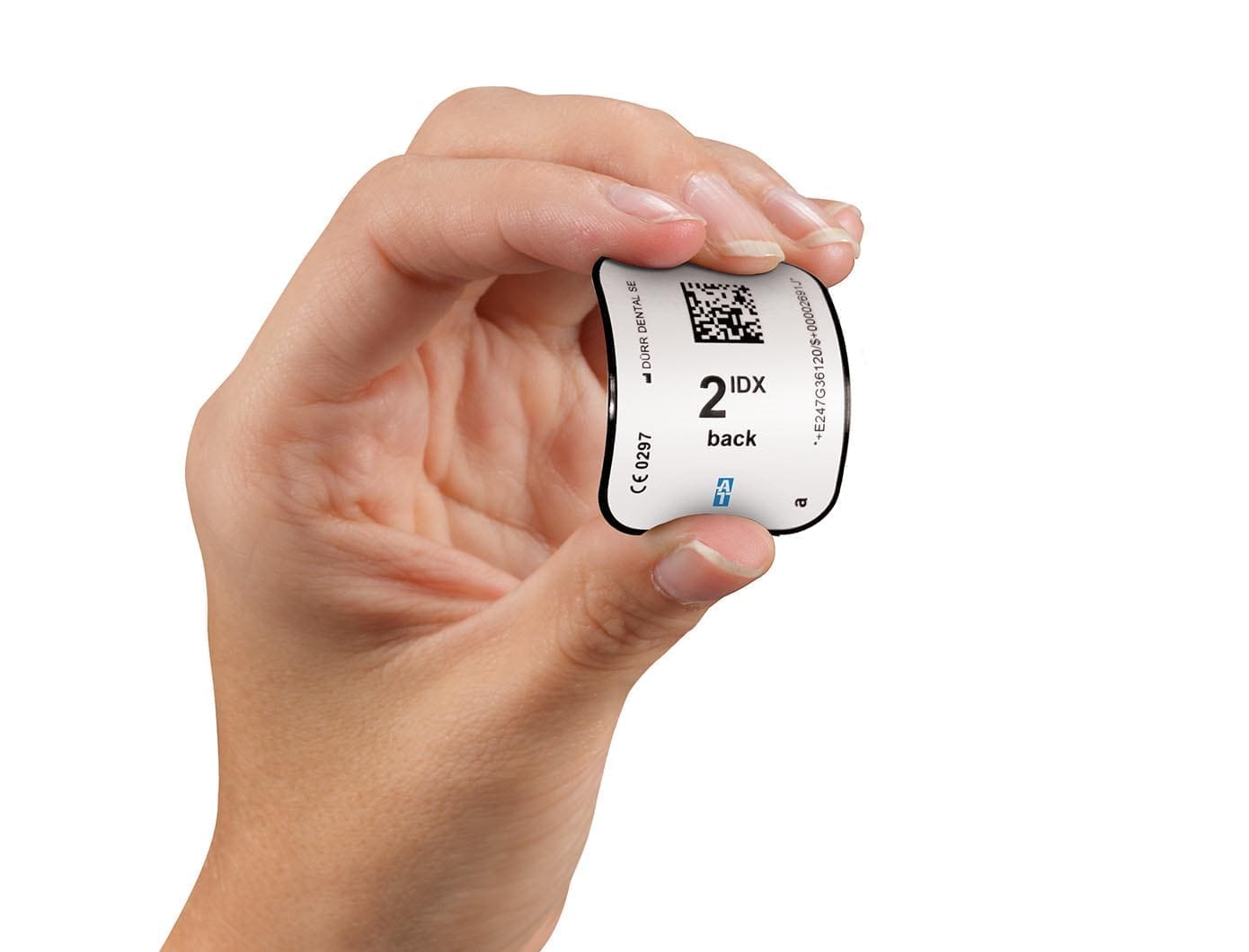

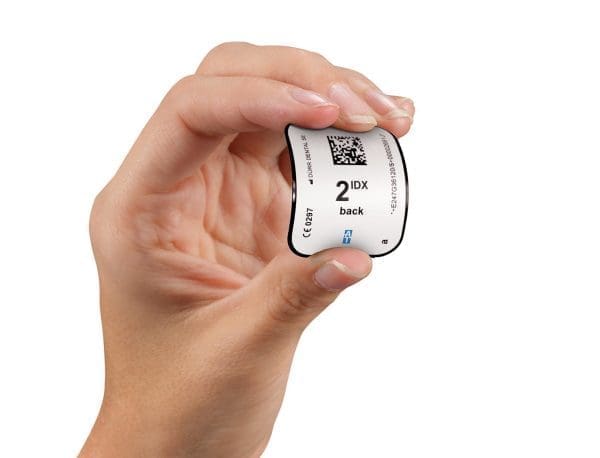

The ScanX Duo Touch digital radiography system enables the intuitive, efficient, and time-saving digitization of PSPs for all intraoral formats sizes 0-4.

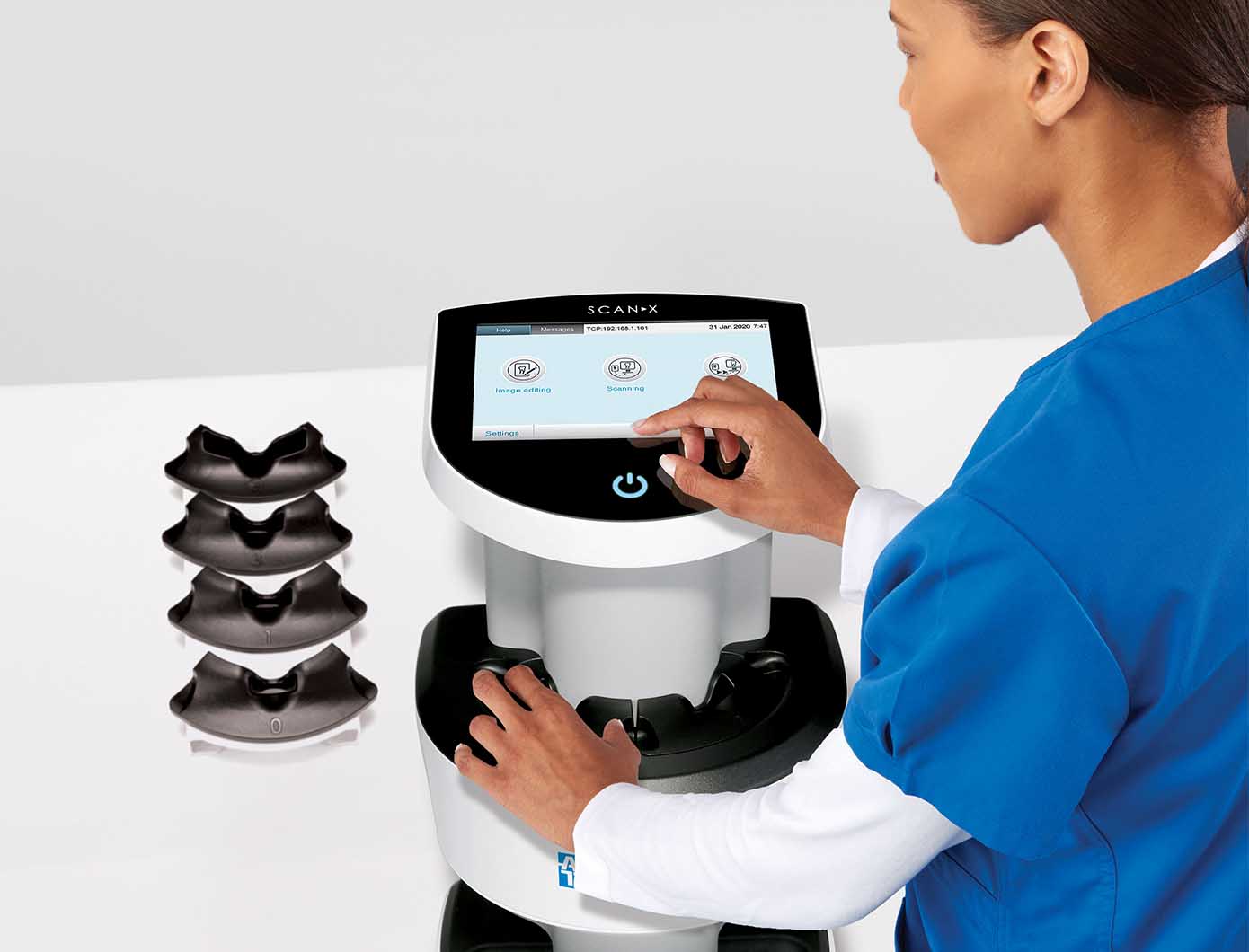

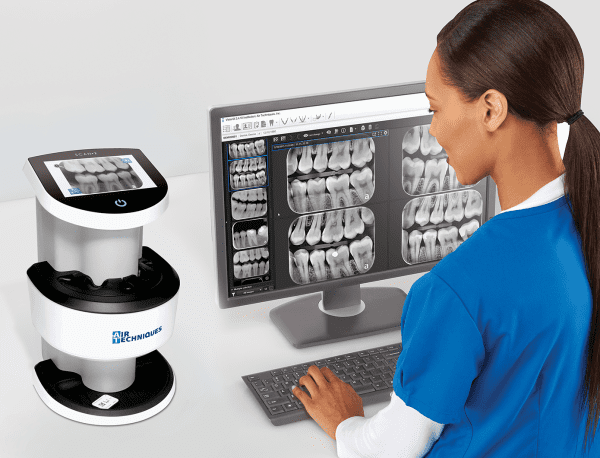

Features a large touchscreen, easy-to-use interface, and dual slots for simultaneous scanning.

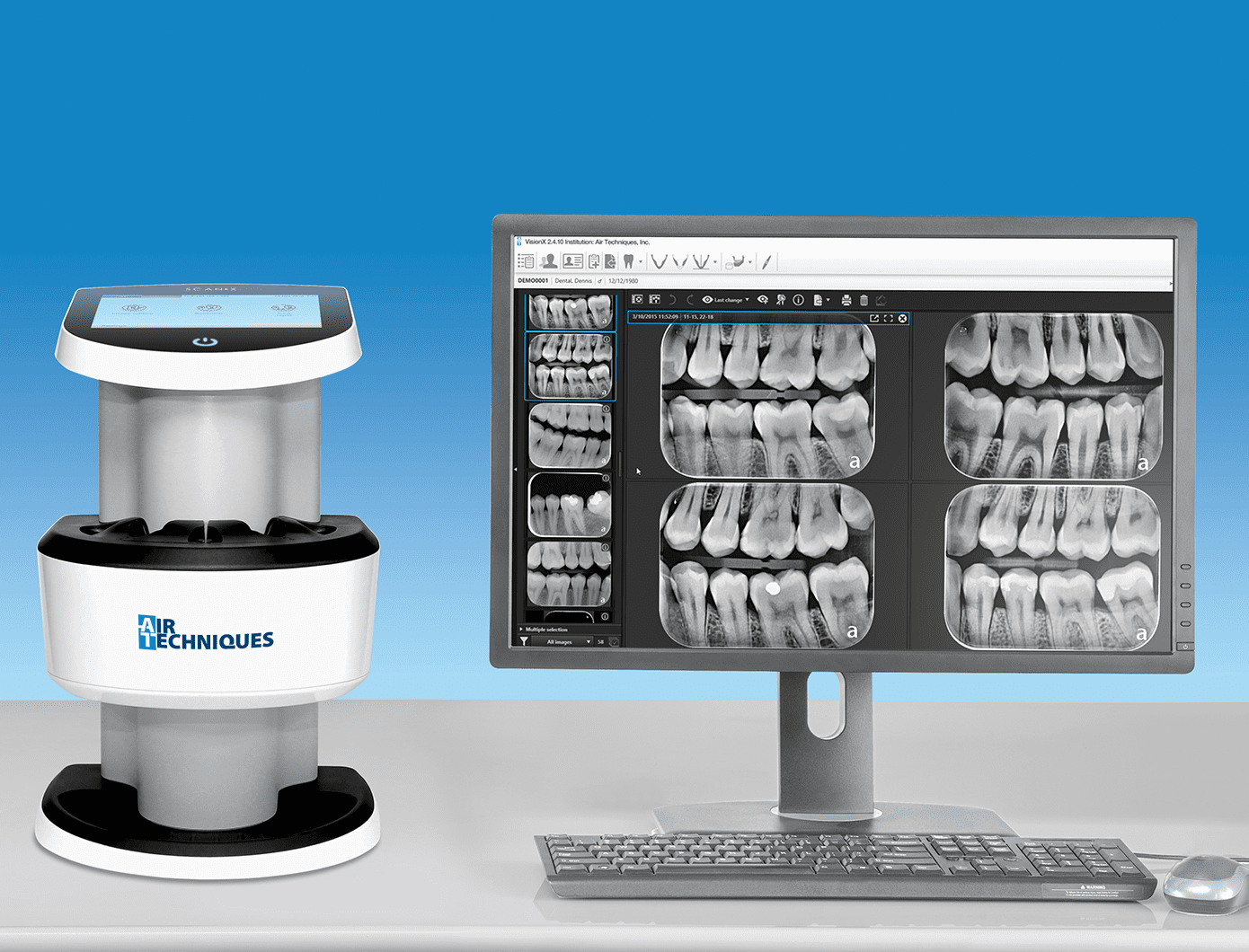

PC connection via LAN or Wi-Fi.
Preset scan modes provide quick and reliable scanning.
AI: Automatic image rotation with VisionX.
Preview and View X-ray Images.
Easy to clean and disinfect.
Intuitive Controls.

A Great Feeling of Efficiency and Reliability

Videos

Specifications

ScanX Duo Touch

G8900A

Part Number

7" touchscreen, 800 x 480 pixels, 16.7 million colors

Display

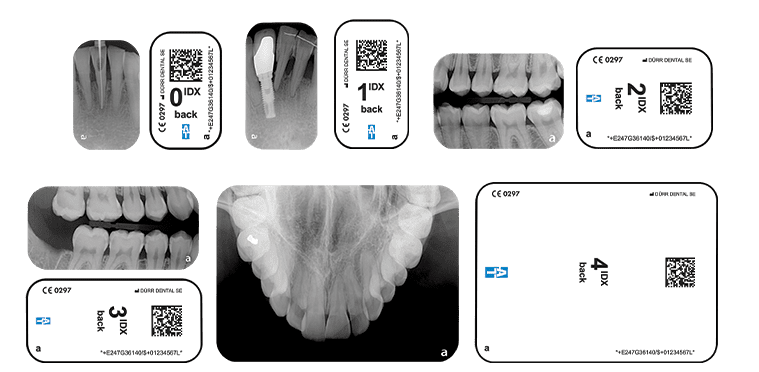

All intraoral formats, sizes 0, 1, 2, 3, 4 IDX PSPs

Plate sizes

ALL SPECS

ScanX Swift View 2.0

G8900A

Part Number

5″ Color-Touch

Display

S0, S1, S2, S3, S4

Plate sizes

ALL SPECS

ScanX Intraoral View

G8600A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

ScanX Classic View

G8700A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4, PAN, Ceph and TMJ

Plate sizes

ALL SPECS

ScanX Swift View

G8500A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

ScanX Swift

G8000

Part Number

N/A

Display

0, 1, 2

Plate sizes

ALL SPECS

G8900A

Part Number

7" touchscreen, 800 x 480 pixels, 16.7 million colors

Display

All intraoral formats, sizes 0, 1, 2, 3, 4 IDX PSPs

Plate sizes

ALL SPECS

G8900A

Part Number

5″ Color-Touch

Display

S0, S1, S2, S3, S4

Plate sizes

ALL SPECS

G8600A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

G8700A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4, PAN, Ceph and TMJ

Plate sizes

ALL SPECS

G8500A

Part Number

4.3” touchscreen, 800 x 480 pixels, 16.7 million colors

Display

0, 1, 2, 3, 4

Plate sizes

ALL SPECS

G8000

Part Number

N/A

Display

0, 1, 2

Plate sizes

ALL SPECS


	/

Downloads

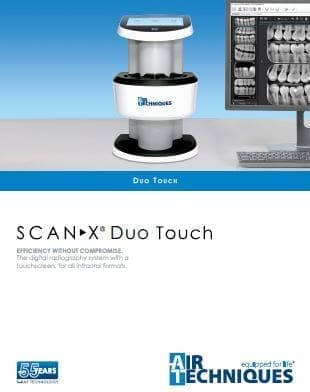

ScanX Duo Touch Brochure

View PDF

ScanX Digital Imaging Brochure

View PDF

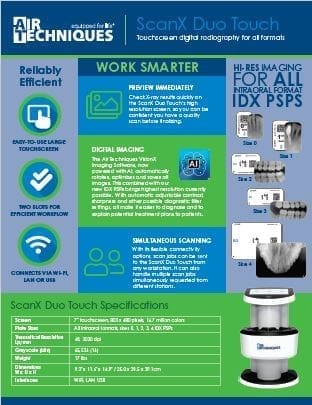

ScanX Duo Touch Infographic

View PDF

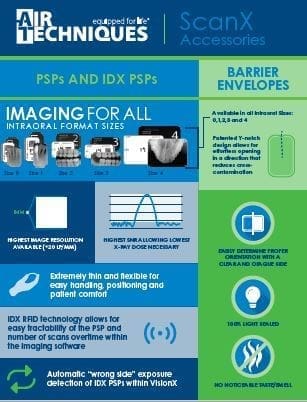

ScanX Accessories Infographic

View PDF

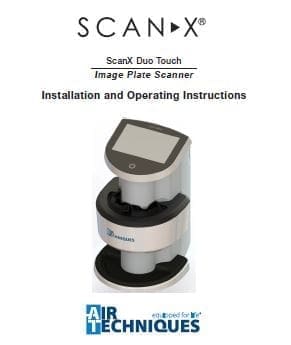

ScanX Duo Touch Manual

View PDF

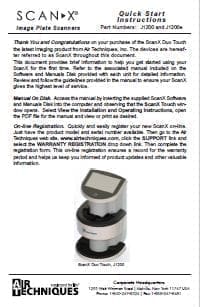

ScanX Duo Touch Quick Start...

View PDF

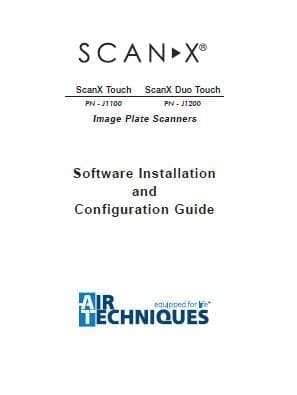

ScanX Duo Touch Software...

View PDF

Display	2.4″ color glass display
Plate sizes	S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi)	40 (2,000)
Effective resolution (LP/mm, dpi)	22 (1,100 )
Greyscale (bit)	16 (65,536)
Weight (lbs/kg)	11.2 / 5.1
Dimensions (H x W x D inch/mm)	9.80 x 8.31 x 10.16 / 249 x 211 x 258
Standby function	Yes
Interfaces	LAN

Display	5″ Color-Touch
Plate sizes	S0, S1, S2, S3, S4
Theoretical resolution (LP/mm, dpi)	40 (2,000)
Effective resolution (LP/mm, dpi)	22 (1,100 )
Greyscale (bit)	16 (65,536)
Weight (lbs/kg)	11.68 / 5.3
Dimensions (H x W x D inch/mm)	10.75 x 8.31 x 10.16 / 273 x 211 x 258
Standby function	Yes
Interfaces	LAN, WLAN
